Guard Rail Fencing

HomepagesLeft Sidebar
Guard Rail Fencing



Guard Rail Fencing

BENEFITS
-------------------------------------------------------------------------------------------------------------------------------------
  • Non gating, re-directive end terminal to 60 Km/h

  • Meet National Standards & Protects vehicle occupants.

  • Ideal for limited space sites.

  • Repairable after vehicle impact.

  • Specifically designed for urban environment

  • Can be customized as per customer requierment

  • Various post options-over length , base plated or cranked to suit Fixation.
  • Can be designed around any terrain

  • Suitable for almost any application from crash rated and secure to highly secure

Application :

  • Highways, Roads

  • Inside cities in crowded areas

  • Ports.

  • Dock areas.

  • Aisles, Bridges

  • High Risk & Utilities Protection

  • Manufacturing plants & warehouses.

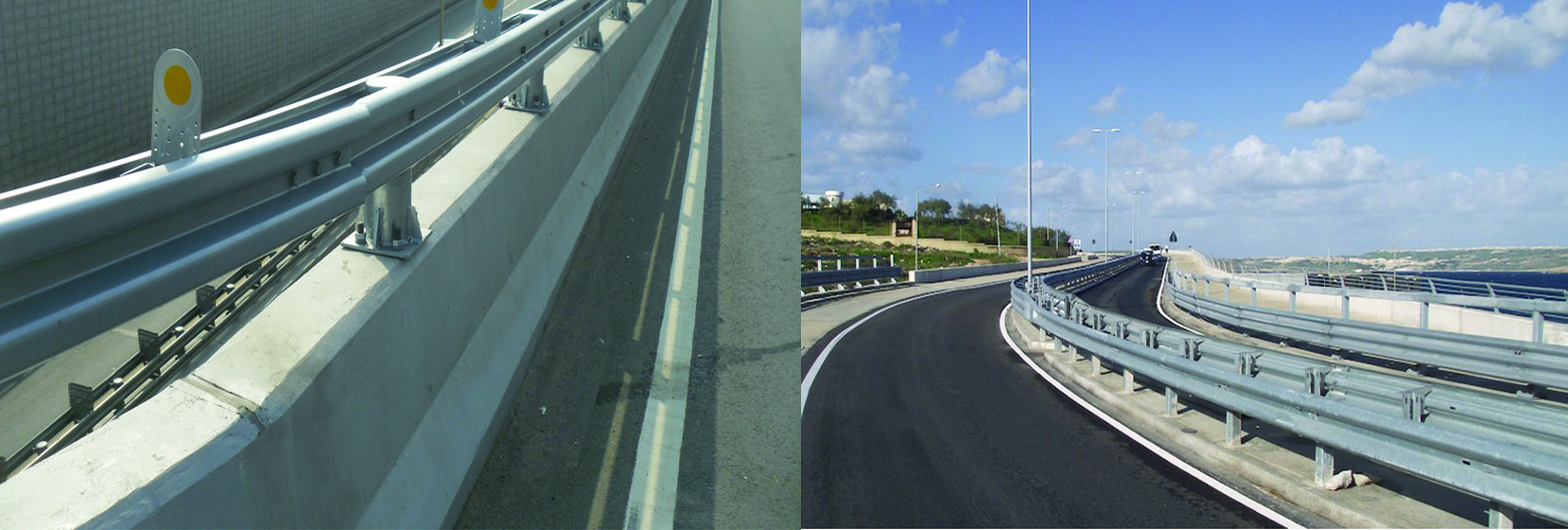

Guard Rail Fencing bot

Panels :

Horizontal Straight Rails from MS sheet thick (2:3 ) mm to form ‘W’ section in a full range of lengths 3000 mm. Curved Rail end from MS sheet thick (2:3 ) mm to form ‘W’ section in lengths up to 600 mm.range of heights from 1.0 meters up to 3.0 meters.

Post :

Post Section: Standard Steel post C150 x4 mm - EN 10162 –in lengths. Pitch 2000 mm from post C/C or as per customer requirement

Finish Options :

Products are hot deep galvanized to BS ENISO 1461.
Galvanized and Powder Coated to BS EN13438.

Standard colours :

[Black RAL 9005]
[Green RAL 6005]
[Grey RAL 7012].
[White RAL 9010] [Yellow RAL
1018].

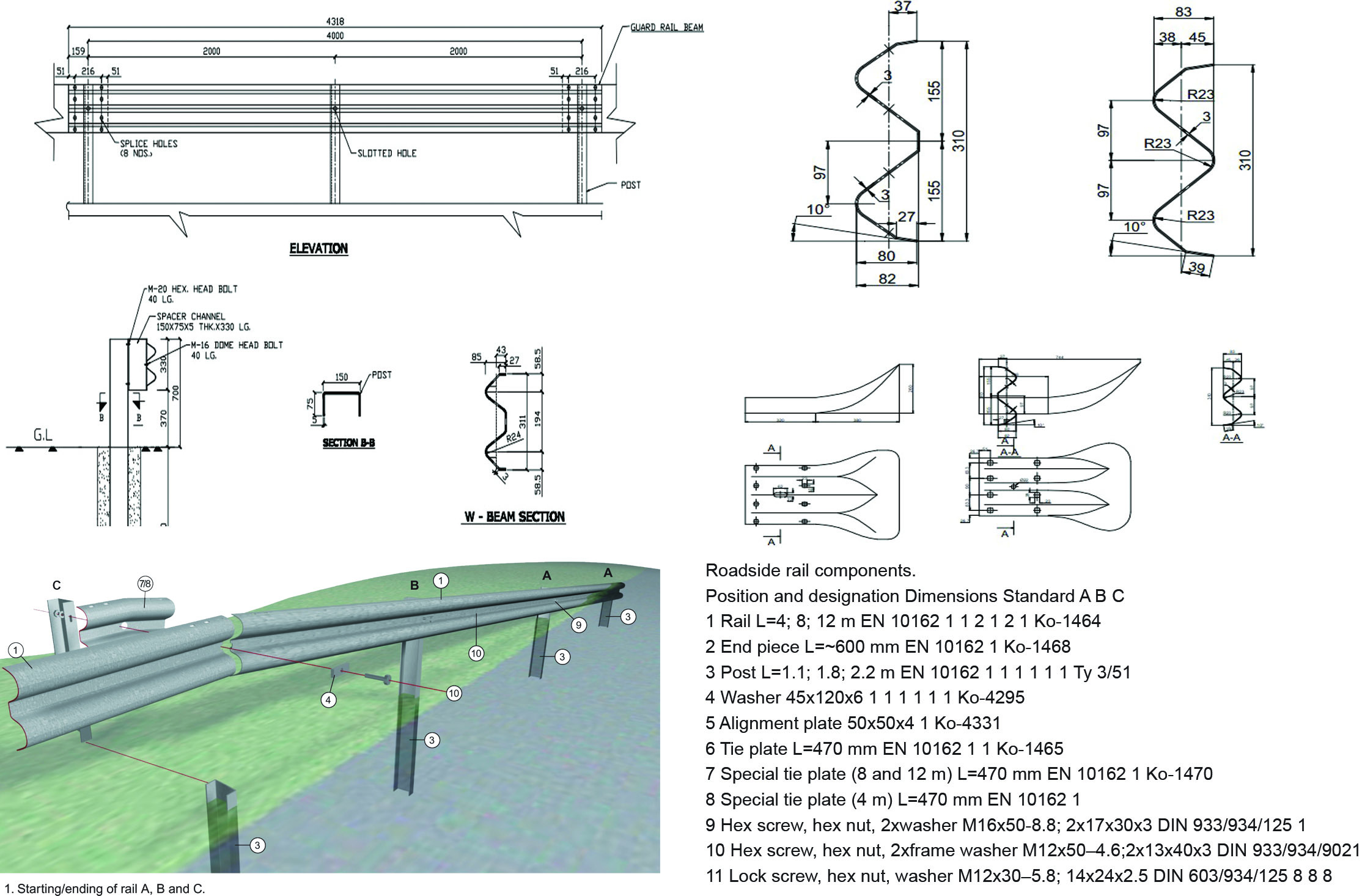

Standerd Drawing: :

Guard Rail Fencing draw

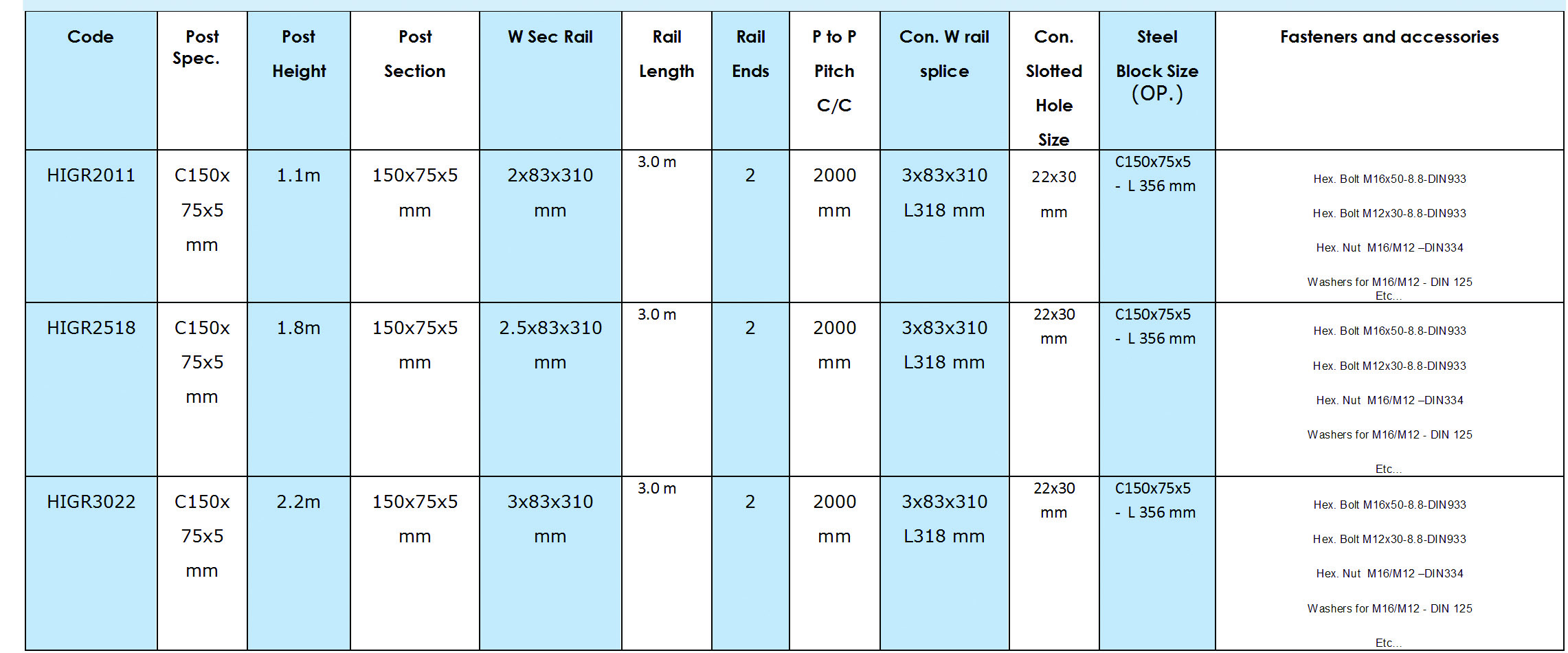

Standerd Dimension:

Guard Rail Fencing dimension.jpg

Guard Rail Fencing bot
