HI-Defensive Deco Fencing

HomepagesLeft Sidebar
HI defensive Deco Top



HI defensive Deco

BENEFITS
-------------------------------------------------------------------------------------------------------------------------------------

Round pale security railing:

Defensive Decorative with its 25mm and 32mm diameter round pales delivers all the advantages of the defensive with no reduction in strength or security. Defensive Decorativeis available with a choice of decorative finials and post tops to offer the right solution for even the most prestigious applications. The welded pale-through-rail construction which means there are no rivets to be forced or palings to be removed. The horizontal rails are sleeved on to the upright posts to provide a seamless design that is both stylish and incredibly strong.

Complete system

  • Anti-climb design.

  • Various mounting options including on wall ,inset and free standing Unique vandal-proof panel to post connectors

  • Post tops can be customized for barbed wire /razor wire/fence spikes/electric fence or adapted to mount CCTV cameras

  • Conforms to BSEN 1722-9

  • Custom designs available.

  • Pale can be specified to include finials.

  • Panels can be made to accommodate sloping ground

  • Seamless, concentrated rail to post fixing.

  • Welded pale-through-rail construction.

  • Can be designed around any terrain.

  • Suitable for almost any application from decorative and secure to highly secure

Application :

  • Parks

  • School

  • Residential

  • Demarcation

  • Low-Medium Risk

  • High Risk

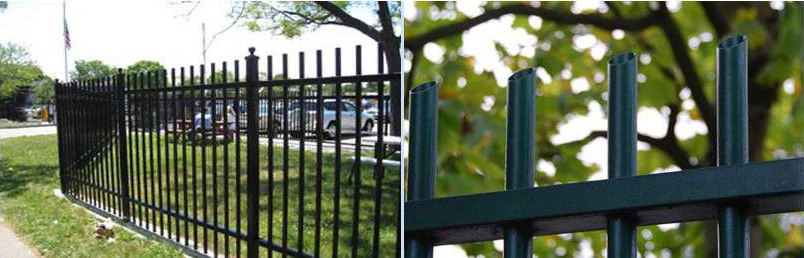

HI defensive Deco bot

Panels :

Constructed upto 3000 mm high and have two horizontal RHS rail 60x30x2 mm and pales are 25x2 mm CHR Round pipes for height up to 2.0 m ( 32x2 mm for > 2.0 m high ) which cut at 45 degrees from top to form a point

Post :

Construction as per the panel high by using RHS 63.5x63.5 mm up 3.0 m High in option of set in concrete or base plate welded at bottom

Gate :

Matching gate are available in single or double leaf, swing, sliding and tracked in manual operation or automatic.


Finish Options :

Products are hot deep Galvanized to BS EN 1461
Galvanized and powder coated to BS EN 13438
Only powder coating to non standard
Marine coat Coating for application near salt water

Standard colours :

Black RAL 9005
White RAL 9010
Blue RAL 5010
Yellow RAL 1018
Red RAL 3028
Green RAL 6005
Blue BS 20-C-40
Brown RAL 8017
Grey RAL 7012

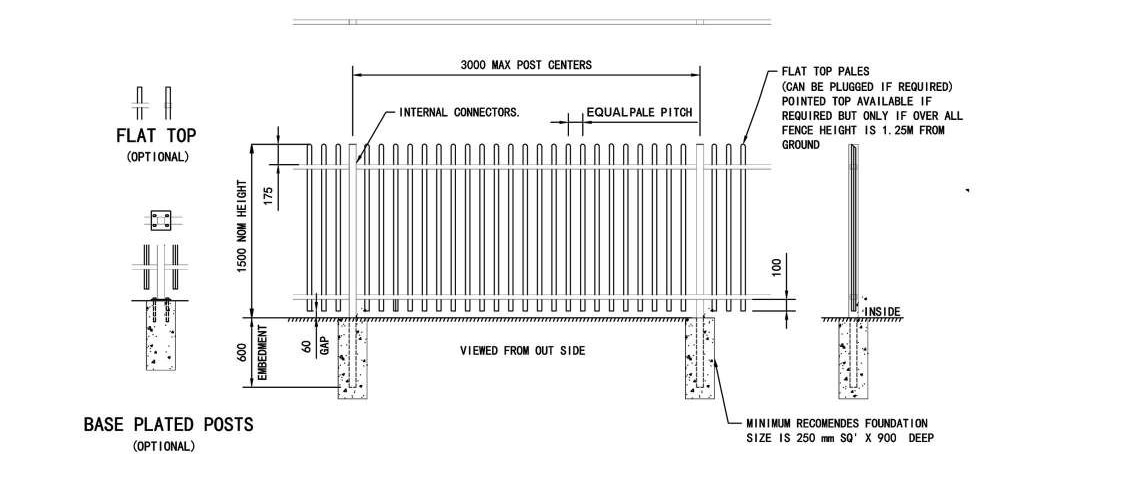

Standerd Drawing: :

HI defensive Deco draw

Standerd Dimension:

code

height

Pales

Post Size

Post Center

Set in Concrete

Base Plated

Horizontal Rail

HD100

1.0M

25mm square

63.5x63.5x2x1600mm

3.0 Center

180x180x600

300x300x150

60x30x2mm

HD150

1.5m

25mm square

63.5x63.5x2x2100mm

3.0 Center

180x180x800

300x300x250

60x30x2mm

HD180

1.8m

25mm square

63.5x63.5x2x2500mm

3.0 Center

180x180x800

300x300x250

60x30x2mm

HD250

2.5m

25mm square

63.5x63.5x2x3300mm

3.0 Center

180x180x800

300x300x430

60x30x2mm

HD300

3.0m

25mm square

63.5x63.5x2x3800mm

3.0 Center

180x180x900

300x300x610

60x30x2mm
