HI-Defensive Extra Fencing

HomepagesLeft Sidebar
HI defensive Extra Top



HI defensive Extra

BENEFITS
-------------------------------------------------------------------------------------------------------------------------------------

Square Pale Security Railing, with anti climb feature topping:

Defensive Extra panels contains additional pales through the top rail and between each full pale to get more security.

The welded pale-through-rail construction which means there are no rivets to be forced or palings to be removed. The horizontal rails are sleeved on to the upright posts to provide a seamless design that is both stylish and incredibly strong

Complete system

  • Anti-climb design.

  • Various mounting options including on wall ,inset and free standing Unique vandal-proof panel to post connectors

  • Post tops can be customized for barbed wire /razor wire/fence spikes/electric fence or adapted to mount CCTV cameras

  • Conforms to BSEN 1722-9

  • Custom designs available.

  • Pale can be specified to include finials.

  • Panels can be made to accommodate sloping ground

  • Seamless, concentrated rail to post fixing.

  • Welded pale-through-rail construction.

  • Can be designed around any terrain.

  • Suitable for almost any application from decorative and secure to highly secure

Application :

  • Parks

  • School

  • Residential

  • Demarcation

  • Low-Medium Risk

  • High Risk

HI defensive Extra bot

Panels :

Constructed up to 3000 mm high and have two horizontal RHS rail 60x30x2 mm and pales are 25x2 mm square pipes full pale .Extra Pale with length 390 mm added through the top rail and between each full pale. All Pales cut at 45 degrees from top to form a poin

Post :

Construction as per the panel high by using RHS 60x60 mm for high 2.25m or more , in option of set in concrete or base plate welded at bottom

Gate :

Matching gate are available in single or double leaf, swing, sliding and tracked in manual operation or automatic


Finish Options :

Products are hot deep Galvanized to BS EN 1461
Galvanized and powder coated to BS EN 13438
Only powder coating to non standard
Marine coat Coating for application near salt water

Standard colours :

Black RAL 9005
White RAL 9010
Blue RAL 5010
Yellow RAL 1018
Red RAL 3028
Green RAL 6005
Blue BS 20-C-40
Brown RAL 8017
Grey RAL 7012

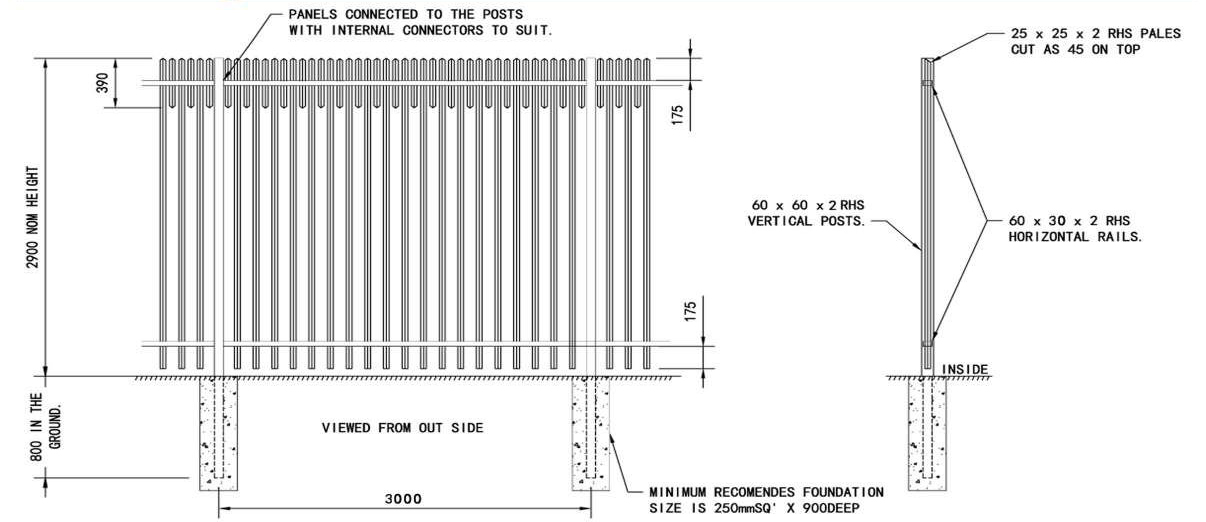

Standerd Drawing: :

HI defensive Extra draw

Standerd Dimension:

code

height

Pales

Post Size

Post Center

Set in Concrete

Base Plated

Horizontal Rail

HDE225

2.25M

25mm square

60X60X2X3050mm

3.0 Center

250X250X800

300x300x430

60x30x2mm

HDE250

2.50m

32mm square

60X60X2X3300mm

3.0 Center

250X250X800

300x300x430

60x30x2mm

HD300

3.00m

32mm square

60X60X2X3800mm

3.0 Center

300X250X800

300x300x610

60x30x2mm


HI defensive Extra
