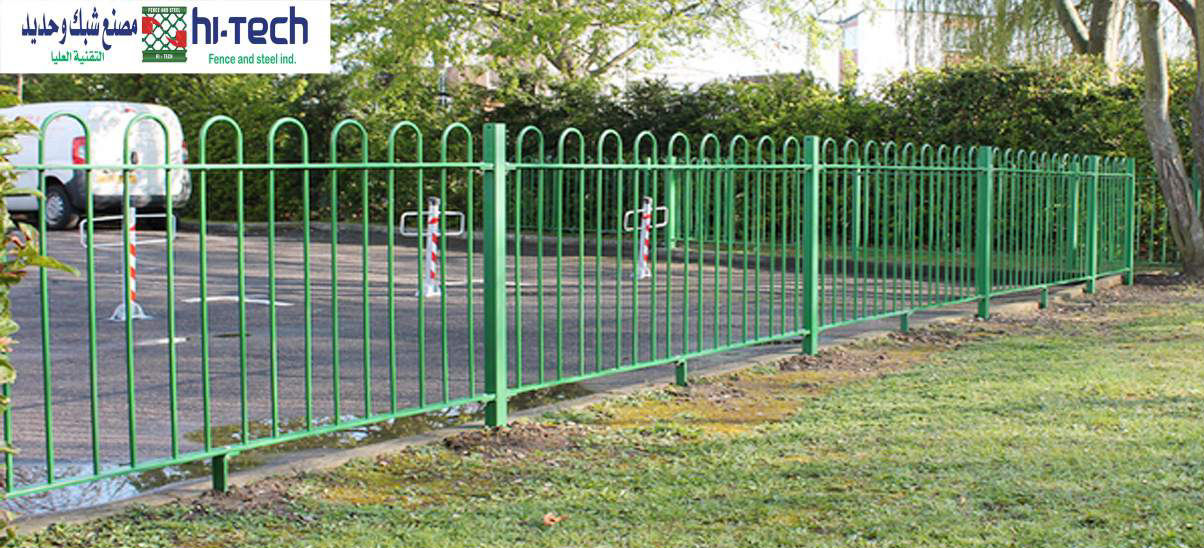

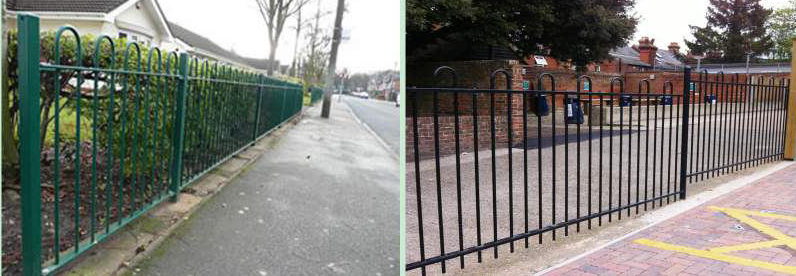

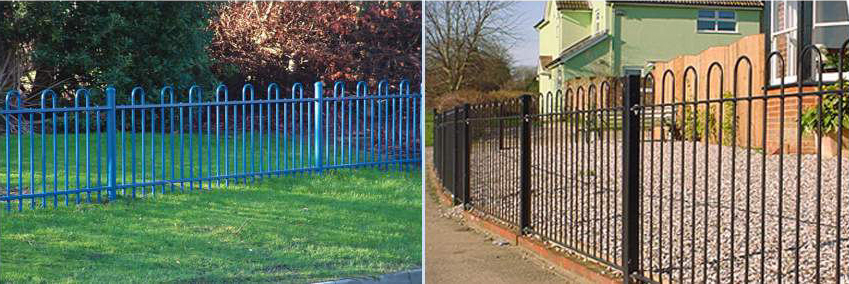

Hi Bow Top Fencing is Perfect for a wide variety of applications, Bow Top fencing also known as Hairpin fencing or hoop top fencing, provides a versatile and durable demarcation and access Bow top fencing has a pale through rail construction with no visible joins is immensely strong and because it's tubular and lighter than traditional solid steel, requires fewer support posts making installation faster and less costly. we manufacture and supply quality Bow Top fencing and gates which conform to standerd Building Regulations.

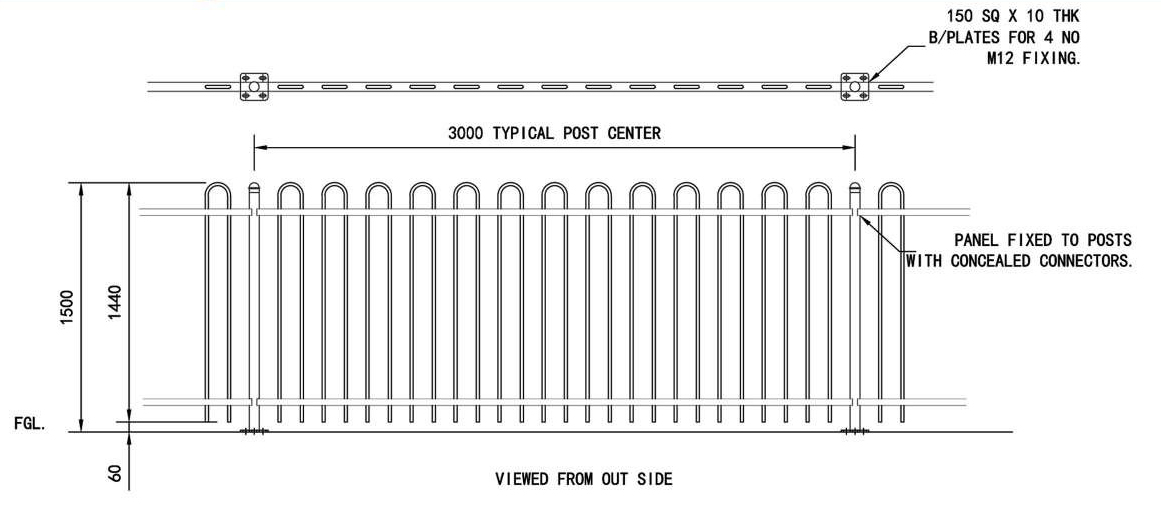

Constructed up to 1800 mm high and have two horizontal RHS rail 60x30x2 mm and pales are 19 mm hollow Round ,curved top and cut at 45 degree for each pale downward pointing to get more security.
Construction as per the panel high by using round 60x3 mm, in option of set in concrete or base plate welded at bottom
Matching Bow Top gates are available in single or double leaf, swing, sliding and tracked in manual operation or automatic.
Products are hot deep Galvanized to BS EN 1461
Galvanized and powder coated to BS EN 13438
Only powder coating to non standard
Marine coat Coating for application near salt water
Black RAL 9005
White RAL 9010
Blue RAL 5010
Yellow RAL 1018
Red RAL 3020
Green RAL 6005
Blue BS 20-C-40
Brown RAL 8017
Grey RAL 7012
code |
height |
Pales |
Post Size |
Post Center |
Set in Concrete |
Base Plated |
Horizontal Rail |
HTB100 |
1.0m |
19mm round |
60X3mm round |
3.0 Center |
250x250x600 |
300x300x150 |
60x30x2mm |
HTB120 |
1.20m |
19mm round |
60X3mm round |
3.0 Center |
250x250x700 |
300x300x230 |
60x30x2mm |
HDD150 |
1.50m |
19mm round |
60X3mm round |
3.0 Center |
250x250x800 |
300x300x250 |
60x30x2mm |
HDD180 |
1.80m |
19mm round |
60X3mm round |
3.0 Center |
250x250x800 |
300x300x250 |
60x30x2mm |
HDD200 |
2.0m |
25mm round |
63.5x63.5x2x2800mm |
3.0 Center |
180x180x800 |
300x300x350 |
60x30x2mm |
HDD250 |
2.5m |
25mm round |
63.5x63.5x2x3300mm |
3.0 Center |
180x180x800 |
300x300x430 |
60x30x2mm |
HDD300 |
3.0m |
25mm round |
63.5x63.5x2x3800mm |
3.0 Center |
180x180x900 |
300x300x610 |
60x30x2mm |
