Hi-Defensive Xtreme Top



Hi-Defensive Xtreme

BENEFITS
-------------------------------------------------------------------------------------------------------------------------------------

Superior perimeter protection

Defensive Extreme security fencing a powerful visual representation of superior perimeter protection. The curved pales are designed to prevent intruders from climbing or scaling the fence, whichever side it is approached and Ideal for higher security applications.

Complete system

  • Anti - climb design

  • Vandal proof

  • Conforms to BS EN 1722-9

  • Custom Designs available

  • Vertical pale spacing conforms to building regulations for anti trap

  • Unique vandal-proof panel to post connectors

  • Various post options-over length , base plated or cranked to suit walls

  • Post Tops can be customized for barbed wire/razor wire / fence spikes /electric fence or adapted to mount CCTV Camera

  • Panels can be racked or stepped to accommodate sloping ground

  • Can be designed around any terrain

  • Suitable for almost any application from decorative and secure to highly secure

Application :

  • Perimeters

  • Company premises

  • High Risk

  • Utilities

Hi Defensive Xtreme bot

Panels :

Constructed up to 3000mm high and have two horizontal RHS rail 60x30mm and pales are 25x2mm square section which are cranked 320mm from the top rail, with each one cut at 45 degrees to form a point.

Post :

Construction as per the panel high by using RHS 63.5x63.5mm in option of set in concrete or base plate welded at bottom.

Gate :

Matching gate are available in single or double leaf, swing, sliding and tracked in manual operation or automatic


Finish Options :

Products are hot deep Galvanized to BS EN 1461
Galvanized and powder coated to BS EN 13438
Only powder coating to non standard
Marine coat Coating for application near salt water

Standard colours :

Black RAL 9005.
Blue RAL 5010
Green RAL 6005
Red RAL 3020
Yellow RAL 1018
Blue BS 20-C-40
Brown RAL 8017
Grey RAL 7012
White RAL 9010

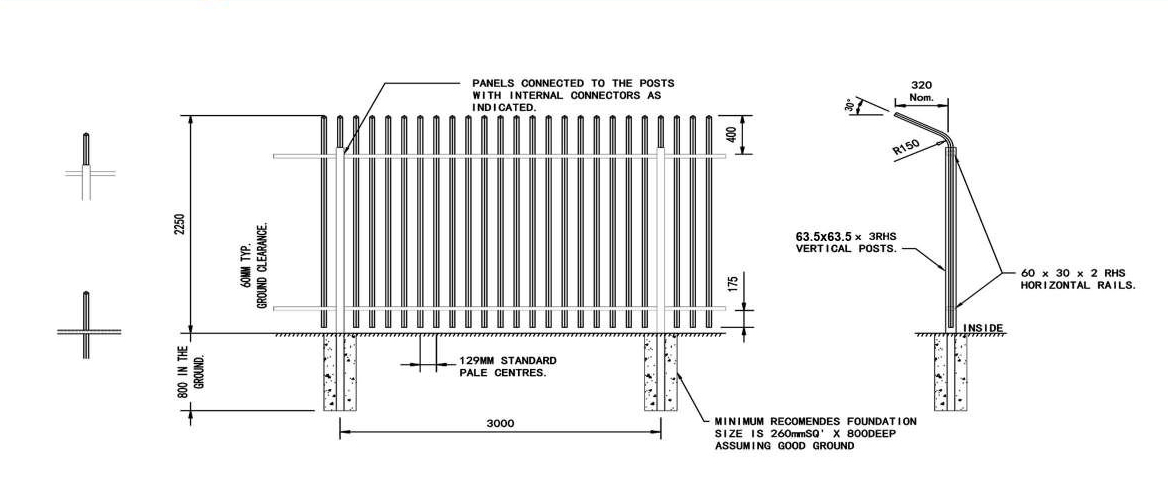

Standerd Drawing: :

Hi Defensive Xtreme draw

Standerd Dimension:

code

height

Pales

Post Size

Post Center

Set in Concrete

Base Plated

Horizontal Rail

HDX225

2.25M

25mm square

63.5X63.5X2mm

3.0 Center

250X250X800

300x300x530

60x30x2mm

HDX250

2.50m

32mm square

63.5X63.5X2mm

3.0 Center

250X250X800

300x300x430

60x30x2mm

HDX275

2.25M

25mm square

63.5X63.5X2mm

3.0 Center

250X250X900

350x300x610

60x30x2mm

HDX290

2.50m

32mm square

63.5X63.5X3mm

3.0 Center

250X250X900

350x300x610

60x30x2mm

HDX300

3.00m

32mm square

63.5X63.5X3mm

3.0 Center

300X250X900

350x300x610

60x30x2mm


Hi Defensive Xtreme
